A MIXER FOR EVERY BEEF & DAIRY HERD

Vertical TMR Feed Mixers

Vertical TMR Feed Mixers
A Mixer for Every Herd
S Series

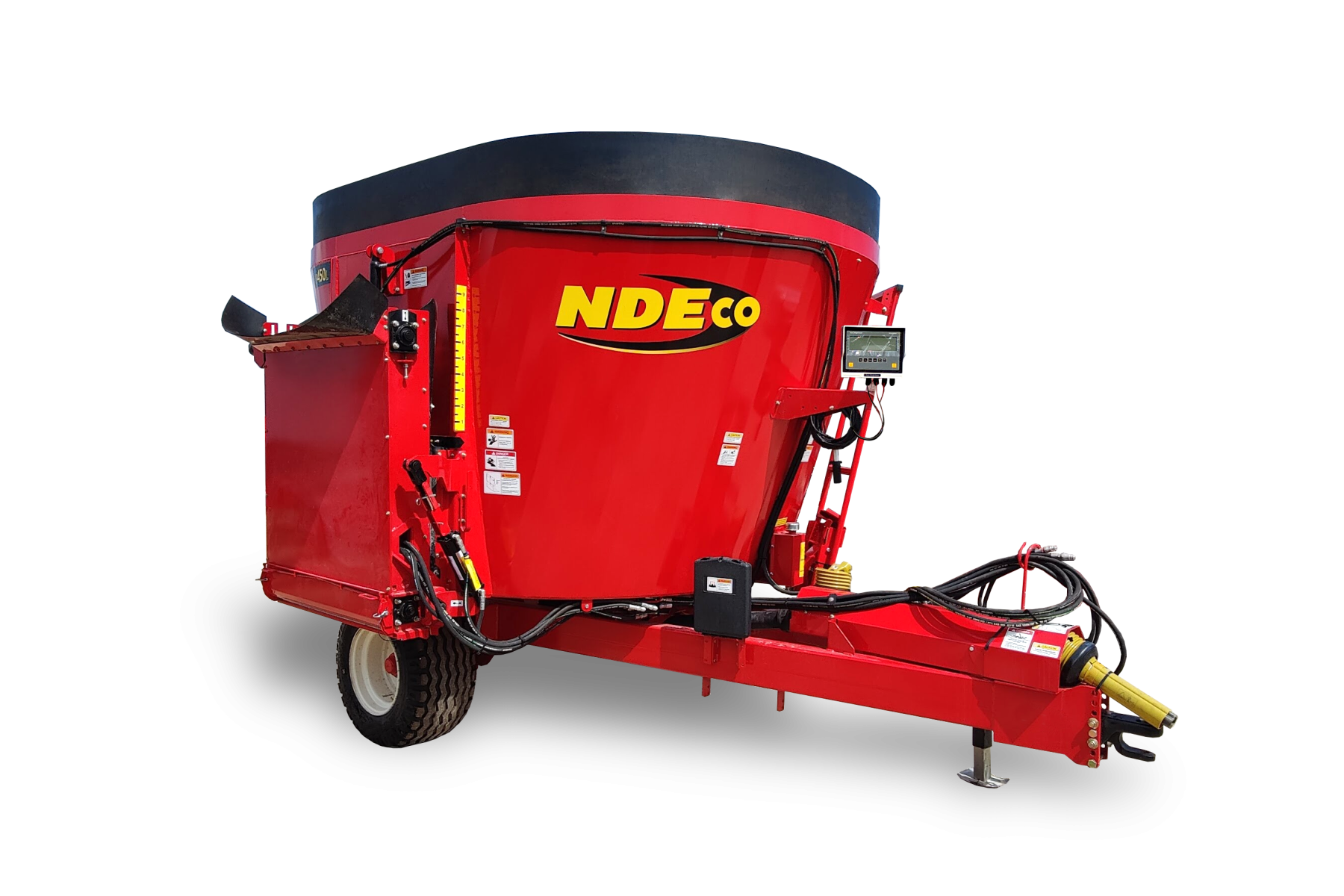

NDEco nde S Series S450L single auger vertical feed mixer

The S Series mixers are smaller economical feed mixers, yet highly configurable to suit your operation. It features a simple design with fewer moving parts. The A shaped frame allows for a tighter turning radius. Can be equipped with Tungsten Knives or either of our patented knives; the 24″ curved carbide insert knife or the serrated knife, giving you the ability to process large bales and long stem forages in this smaller mixer.

  • Side Door Discharge (RH, LH or both)

  • 330 to 575 Cubic Feet Capacity

  • 3′ to 9′ Side Door Conveyors

  • 24″ curved Carbide & Serrated Knives

  • Single Axle or Walking Tandem

  • 540 or 1000 RPM Multi-Stage Planetary Gearbox

S Series Mixers
U Series

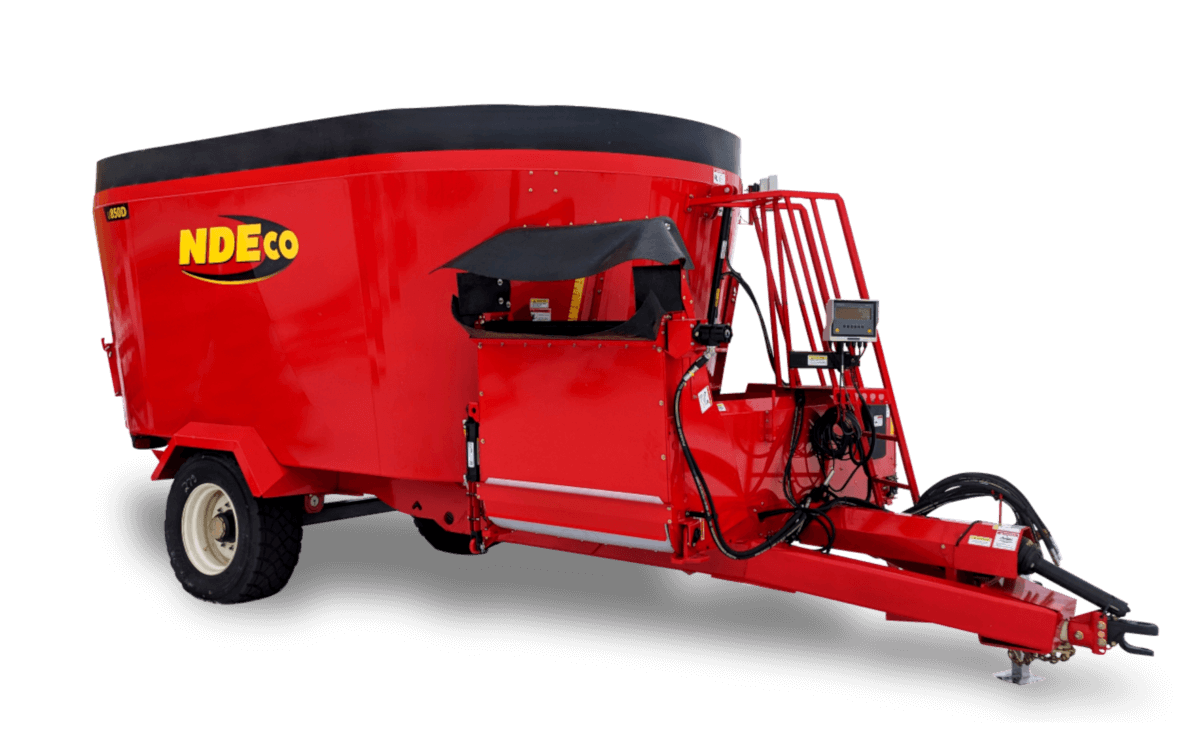

NDEco U Series Dual U850D vertical tmr feed mixer

The U Series dual mixers feature a unibody construction, making it an economical and compact light-weight mixer. It features the same great mixing features such as the step floor design with overlapping augers for an even front to back mix and complete cleanout, along with a wide conveyor riding on a Fixed Single or Walking Tandem axle.

  • Front Door Discharge

  • 475 to 855 Cubic Feet Capacity

  • Economical Uni-body Design

  • 42″ wide Front Folding or Flat Conveyor

  • Fixed Single or Walking Tandem Axle

  • Super Singles and Flotation Tires

  • Heavy Duty Multi-Stage Planetary Gearboxes

U Series Mixers
FS Series | Single
NDEco FS700 vertical feed mixer wagon

The FS Series Single Auger mixers are all-purpose feed mixers suitable for all types of operations. It features a full frame and 4-point scale system, front or side discharge with a wide array of conveyor options, and a number of available tire and axle configurations. This series offers our widest range of options and can truly be custom built to your needs.

  • Front/Side or Rear Door Discharge

  • 395 to 650 Cubic Feet Capacity

  • 42″ wide Suspended Front Conveyor (Folding or Flat 2-way), or up to 9′ long Side Conveyor

  • Industry leading 58″ Wide Door

  • Lateral Pivot/Walking Tandem

  • Heavy Duty Multi-Stage Planetary Gearbox

FS Single Mixers
FS Series | Dual
NDEco FS1000D nde vertical tmr feed mixer wagon 3' dogleg conveyor

The FS Series Dual Auger mixers are all-purpose feed mixers suitable for all types of operations. They features a full frame and 4-point scale system, front, side or rear discharge with a wide array of conveyor, tire and axle options. All dual auger mixers feature a step floor design and overlapping augers, producing an even front to back mix and a rapid and complete cleanout.

  • Front/Side or Rear Door Discharge

  • 715 to 1400 Cubic Feet Capacity

  • 42″ wide Suspended Front Conveyor (Folding or Flat 2-way), or up to 9′ long Side Conveyor

  • Industry leading 58″ Wide Door

  • Lateral Pivot/Walking Tandem/Spring Suspension

  • Step Floor Design/Overlapping Augers

  • Heavy Duty Multi-Stage Planetary Gearboxes

FS Dual Mixers
FS Series | Triple

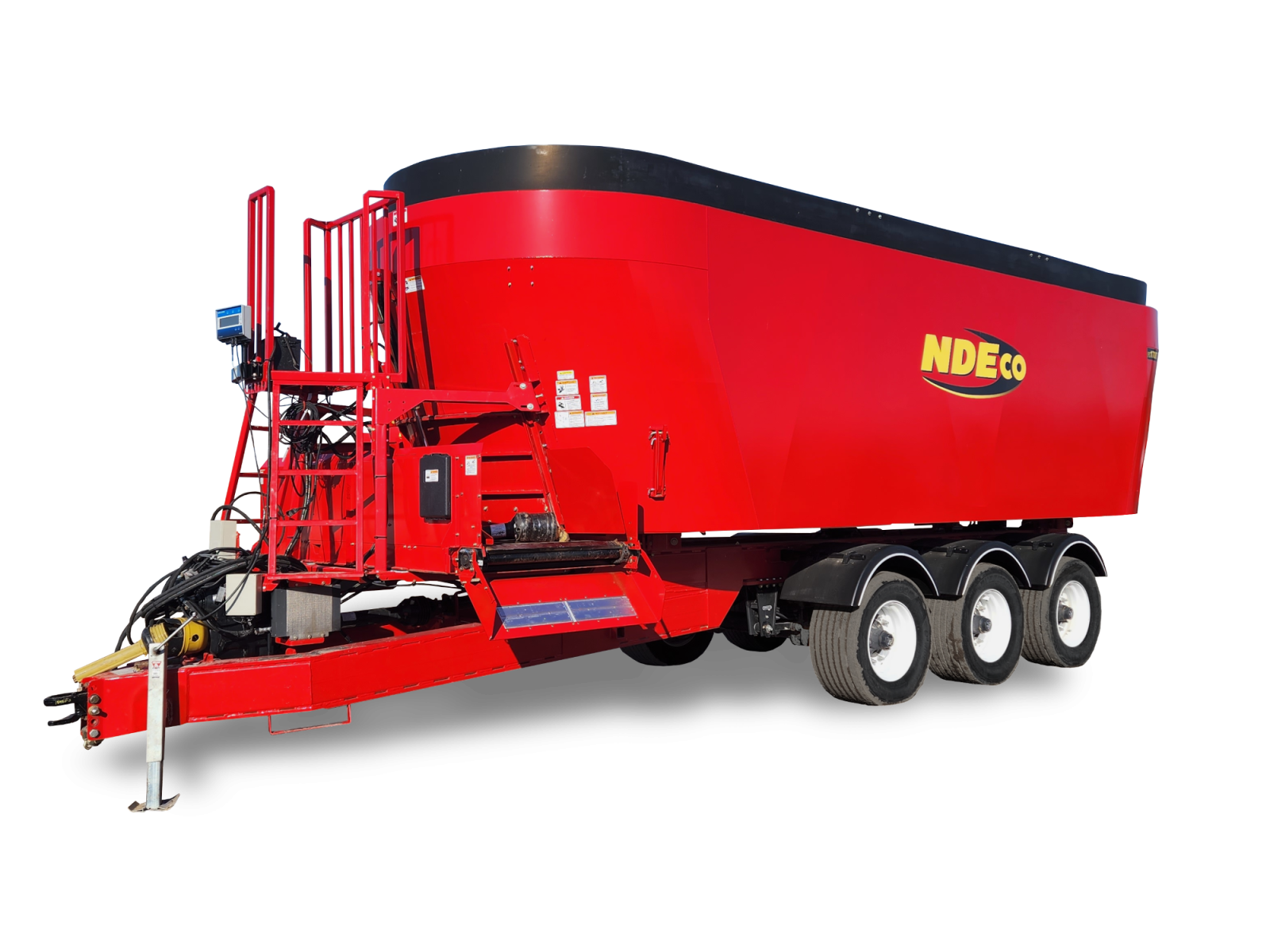

NDEco FS1700T Triple Auger Feed Mixer nde vertical mixer

The FS Series Triple Auger mixer is a large 1700 cubic foot mixer. It features front, side or rear discharges with a wide array of conveyor options. The mixer rides on a tandem walking beam or tridem spring or hydraulic height adjustable suspension with steer axles. The triple mixer features a step floor design and overlapping augers, producing an even front to back mix and a rapid and complete cleanout.

  • Front/Side or Rear Door Discharge

  • 1700 Cubic Feet Capacity

  • 42″ wide Suspended Front Conveyor (Folding or Flat 2-way), or up to 9′ long Side Conveyor

  • Industry leading 58″ Wide Door

  • Tandem Walking Beam or Tridem Suspensions

  • Step Floor Design/Overlapping Augers

  • Heavy Duty Multi-Stage Planetary Gearboxes

FS Triple Mixers

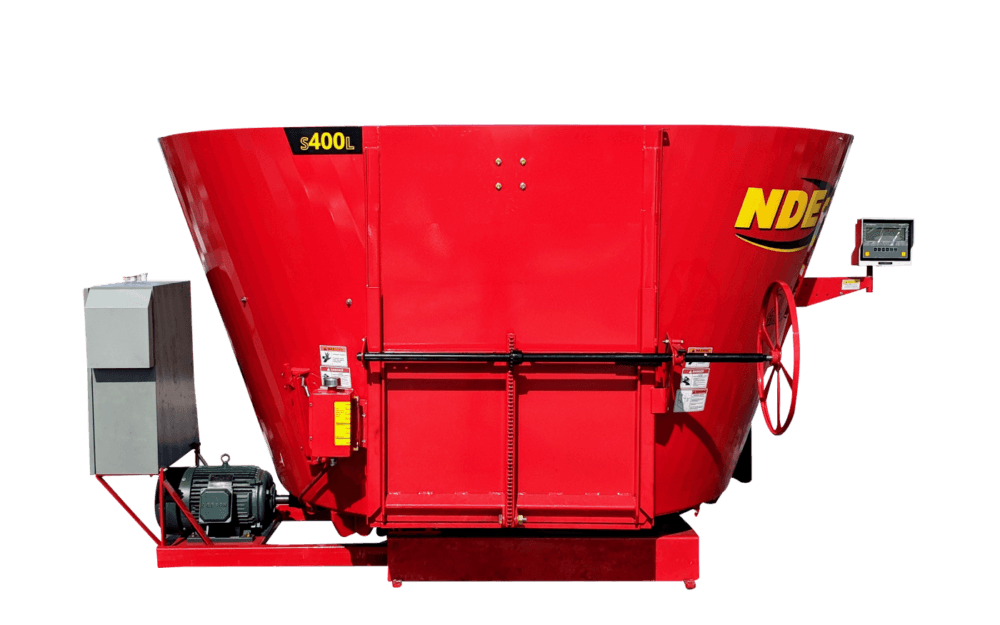

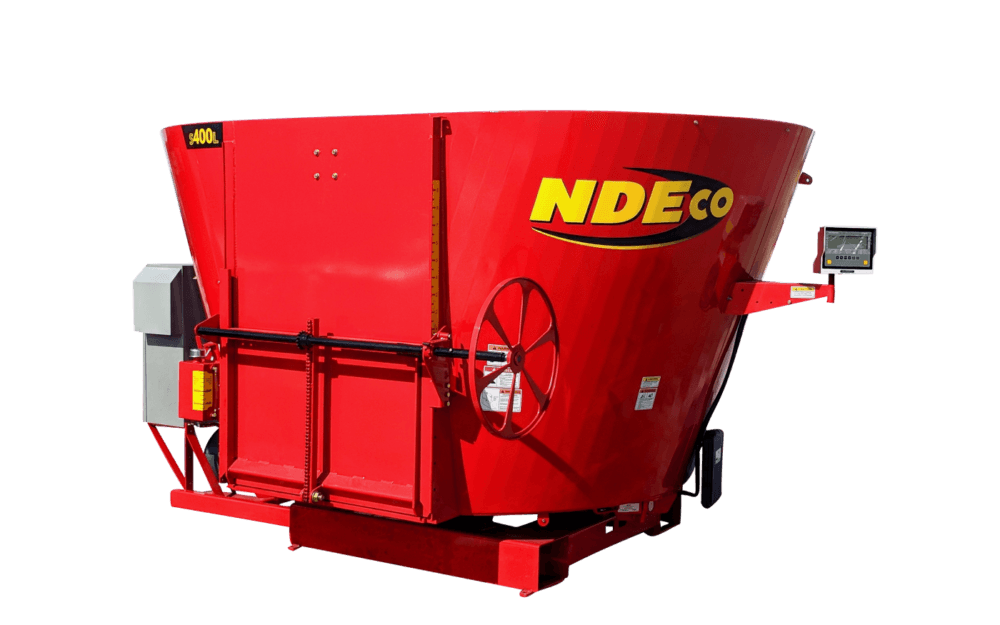

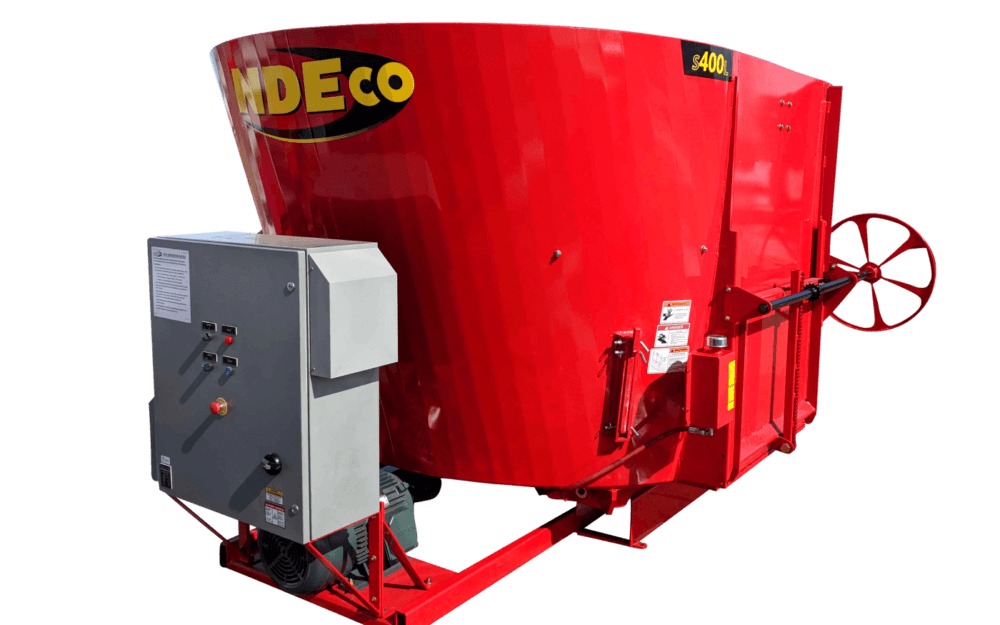

Stationary
NDEco S Series Stationary vertical tmr feed mixer

All S and FS series mixers are available in a stationary configuration. Displayed unit is an S400 model with the following specifications:

  • Planetary geared for a direct drive

  • 30hp 3 phase Leeson motor 1750rpm

  • Benshaw VFD with 3 operating speeds
