FS Series

Dual Auger

The FS Series mixers are all-purpose mixers featuring front/side or rear discharges with a wide array of conveyor options and tire/axle configurations. They feature an exclusive step floor design and overlapping augers, producing an even front to back mix and a rapid and complete cleanout.

FS Series

Dual Auger

The FS Series dual mixers are all-purpose mixers featuring front/side or rear discharges with a wide array of conveyor options and tire/axle configurations. They feature an exclusive step floor design and aggressive overlapping augers, producing an even front to back mix and a rapid and complete cleanout, all driven by synchronized heavy duty multi-stage planetary gearboxes engineered for large capacities and resistance to overloading.

Models & Specs
Overview / Key Features
  • Capacity from 715 to 1700 cubic feet

  • Industry leading 58″ front door opening. A 43″ side door is available, ideal for longer reach requirements.

  • Front discharge options are a flat 2 way or a 24″ or 36″ folding dogleg conveyor. (See Front Discharge details) Side Door conveyors are offered in lengths of 3′ to 9′ for a long reach.   (See Side Discharge details)

  • Tandem Spring Suspension Axles with Tandem, Super Singles or Flotation Tires. Walking Tandem available on smaller duals.

  • All FS Series mixers are available in a stationary form.

  • All ‘L’ model mixers offer a lower height of around 100″ for lower overhead clearance and easier loading.


  • Process large bales and roughage with our exclusive 24″ curved Carbide Insert Knives on the full flighted Augers. See all Auger details

  • All Dual and Triple Auger mixers feature an exclusive Step Floor design and overlapping augers, producing an even front to back mix and a rapid and complete cleanout.


  • Capacity from 715 to 1400 cubic feet

  • Industry leading 58″ front & rear door openings and/or 43″ side doors, ideal for longer reach requirements.

  • Front discharge options are a flat 2 way or a 2′ to 5′ folding dogleg conveyor. (See Front Discharge details) Side Door conveyors are offered in lengths of 3′ to 9′ for a long reach.   (See Side Discharge details)

  • Tandem Spring Suspension Axles with Tandem, Super Singles or Flotation Tires. Walking Tandem available on smaller duals.

  • Robust, heavy duty fully tubed frame, guaranteeing unparalleled stability and reliability

  • All FS Series mixers are available in a stationary form.

  • All ‘L’ model mixers offer a lower height of around 100″ for lower overhead clearance and easier loading.



  • Our augers feature an aggressive full-flighted auger design, creating the best lift action and ensuring a consistent bottom to top mix.
  • Heavy Duty Multi-Stage Planetaries specifically engineered for high peak torque capacities in Mixers. (See more Planetary details)

  • Process bales and long stem forages easily with either of our patented knife options: 24″ Curved Carbide or the Serrated Carbide Knife. See all Auger details

  • All Dual Auger mixers feature an exclusive Step Floor design and overlapping augers, producing an even front to back mix and a rapid and complete cleanout.


MODELFS850DLFS950DLFS1000DFS1200DFS1400D

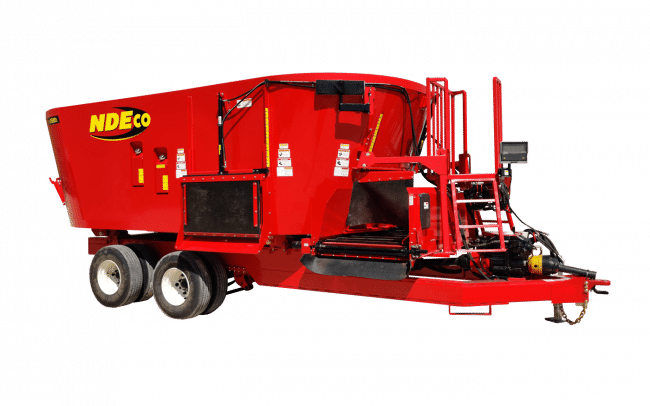

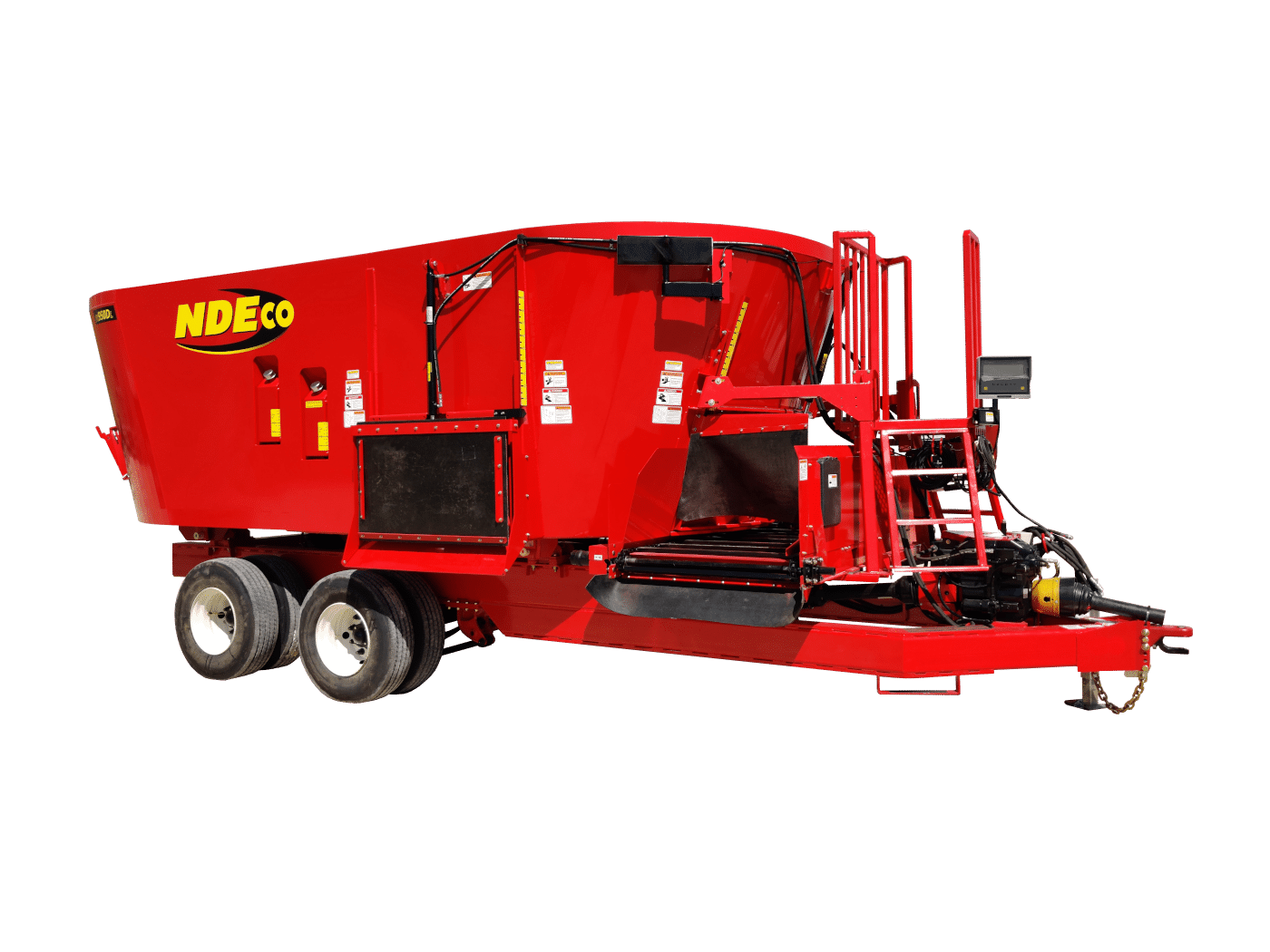

ImageNDEco FS850DL w/ 2-way Flat Conveyor and Tandem TiresFS950DL NDEco Vertical Feed MixerNDEco FS1000D Dual Auger Vertical Feed MixerNDEco Vertical Feed Mixer FS1200D
Capacity715 ft³ / 20.2 m³800 ft³ / 22.6 m³865 ft³ / 24.5 m³1025 ft³ / 29 m³1240 ft³ / 35.2 m³
Capacity (12" Ext.)850 ft³ / 24 m³950 ft³ / 27 m³1000 ft³ / 28.4 m³1180 ft³ / 33.4 m³1425 ft³ / 40.3 m³
Empty Weight20,890 lbs21,720 lbs21,318 lbs22,240 lbs26,640 lbs
Knives (max)1818181818
Door Opening Width58"58"58"58"58"
Floor Thickness3/4"3/4"3/4"3/4"3/4"
Wall Thickness1/4"1/4"1/4"1/4"1/4"
PTO HP Requirement (min)130 HP160 HP150 HP180 HP200 HP
PTO Speed1000 RPM1000 RPM1000 RPM1000 RPM1000 RPM
Standard TiresLT235/75R17.5 or 445/50R22.5LT235/75R17.5 or 445/50R22.5LT235/75R17.5 or 445/50R22.5LT235/75R17.5 or 445/50R22.5295/75R22.5 or 445/50R22.5
AxlesTandem Spring/ Walking Tandem or Lateral PivotTandem SpringTandem Spring/ Walking Tandem or Lateral PivotTandem SpringTandem Spring
A - Height104"108"116"120"130"
B - Length321"330.5"321"330.5"348"
C - Width (w/front conveyor)113.5"113.5"113.5"113.5"113.5"
Width (w/side conveyor)117"123"117"123"129"
E - Track Width (standard)102.5"109"102.5"109"109"
F - Tub Width102"108"102"108"116"
G - Tub Length243"253"243"253"272"
Mixer Height Dimensions - FS Dual & Triple
MODELSUSPENSIONTIRESHEIGHT
FS950DLTruck Suspension10R17.5108.5
FS850DLTruck Suspension10R17.5105.5
FS1400DTruck Suspension10R17.5127.5
FS1200DTruck Suspension10R17.5121
FS1000DTruck Suspension10R17.5117.5
FS1700TTridem Spring11R22.5130
FS1700TTridem Hydraulic Susp11R22.5131
FS950DLTruck Suspension11R22.5114
FS850DLTruck Suspension11R22.5111
FS1400DTruck Suspension11R22.5130.5
FS1200DTruck Suspension11R22.5126.5
FS1000DTruck Suspension11R22.5123
FS850DLLateral Pivot12.5L x 16
FS1000DLateral Pivot12.5L x 16
FS850DLLateral Pivot15.0/55-17
FS850DLTandem Walking15.0/55-17
FS1000DLateral Pivot15.0/55-17
FS1000DTandem Walking15.0/55-17115.5
FS950DLTruck Suspension235/75R17.5106.5
FS850DLTruck Suspension235/75R17.5103.5
FS1400DTruck Suspension235/75R17.5125.5
FS1200DTruck Suspension235/75R17.5119
FS1000DTruck Suspension235/75R17.5115.5
FS1700TTridem Spring275/70R22.5128
FS950DLTruck Suspension275/70R22.5110.5
FS850DLTruck Suspension275/70R22.5107.5
FS1400DTruck Suspension275/70R22.5129.5
FS1200DTruck Suspension275/70R22.5123
FS1000DTruck Suspension275/70R22.5119.5
FS1700TWalking Beam315/80R22.5133
FS1700TTridem Spring315/80R22.5130.5
FS1700TTridem Hydraulic Susp315/80R22.5132
FS850DLTandem Walking440/55R18
FS1000DTandem Walking440/55R18
FS1700TTandem Walking445/50R22.5131.5
FS1700TTridem Spring445/50R22.5129
FS1700TTridem Hydraulic Susp445/50R22.5130.5
FS950DLTruck Suspension445/50R22.5111.5
FS850DLTruck Suspension445/50R22.5108.5
FS1400DTruck Suspension445/50R22.5130.5
FS1200DTruck Suspension445/50R22.5124
FS1000DTruck Suspension445/50R22.5120.5
FS950DLTruck Suspension600/40R22.5118.5
FS850DLTruck Suspension600/40R22.5115.5
FS1400DTruck Suspension600/40R22.5135
FS1200DTruck Suspension600/40R22.5131
FS1000DTruck Suspension600/40R22.5127.5

FRONT DISCHARGE2' Conv.3' Conv.4' Conv.5' Conv.
H - Unloading Height37.5"40.5"43"46"
I - Unloading Reach26"38.5"50"61.5"
J - Clearance29.5"29.5"29.5"29.5"
SIDE DISCHARGE3' Conv.4.5' Conv.6' Conv.7.5' Conv.9' Conv.
H - Unloading Height33"49.5"56"63"69.5"
I - Unloading Reach40.5"57"74"91"107.5"
J - Clearance29.5"29.5"29.5"29.5"29.5"
* All dimensions are based on standard tires and excluding the rubber top extension.
* For model FS1400D add 5″ to Front Discharge dimensions H and J, and 7″ for a Side Discharge
All FS Series | Dual Options
FS850DL
FS950DL
FS1000D
FS1200D
FS1400D

24″ Curved Carbide Knife

Patented knife for processing bales and cutting/mixing long stem forages.

Serrated Carbide Knife

Patented knife cuts bales and long stem by up to 30% faster than the standard carbide knife with reduced wear.

Flotation Tires

600/40-22.5 Flotation Tires

Lateral Pivot Axles

Switch to Lateral Pivot axles for tighter turns.

Super Single Tires

445/50-22.5

Conveyor Rubber Feed Slide

Guide the feed with a rubber feed slide extension.

Conveyor Wind Guard

Protect the feed as it comes off the conveyor with a Rubber Wind Guard.

Walking Tandem Axles

Choose Walking Tandem Axles for applications where the Spring Suspension is not needed.

2-Speed Gearbox

Add a heavy duty 2-speed gearbox.

Zuidberg Powershift Gearbox

Shift on the fly, under load, or set it to automatically shift by sensing the rpm of the driveline.

Scale Monitors

Choose a basic or fully programmable Weight-tronix or Digi-Star Scale Indicator or a Remote Display.

Road Light Kit (LED)

Be road safe with the LED lighting kit.

12″ Rubber Extension

Extend the capacity by adding a 12" rubber extension.

Conveyor Magnet Feed Slide

Add a magnetic feed slide to any conveyor or chute.

Side Door Conveyors

Choose a 42″ wide folding side conveyor from lengths of 3′, 4.5′, 6′, 7.5′ or 9′.

MegaMag Restrictor

The restrictor prevents dry materials (hay) from swirling. In addition, remove metallic debris from your feed with a powerful restrictor mounted magnet.

All FS Series | Dual Images
FS850DL
FS950DL
FS1000D
FS1200D
FS1400D

See all Videos

NDEco Auger feed mixer 24
See the Volcanic Mix

AUGER & KNIVES


Our auger is the key component for producing the most uniform and consistent ration throughout the mix from bottom to top. It features an aggressive design with full flighting on a continuous curve without uneven cutouts that create inconsistent feed drops. This continuous curve provides the best lift action and ensures that once feed material is picked up it moves up in a uniform and consistent manner, rolling material back into the mix evenly and not dropping material in batches that create an uneven ration throughout.

Not only does this create a more uniform ration, it also speeds up the processing time by working harder to ensure once feed is picked up it keeps moving with maximum efficiency. Being aggressive with the design focuses on the best possible mix at the fastest possible pace with the largest possible material load, directly converting the required horsepower into the result of the mix.

To match the aggressive auger design, each auger has the capacity of up to 9 large knives, including industry exclusive carbide options designed to aggressively slice through bales and roughage.


  • Full Flighting – A one piece, 5/8″ thick continuous tapered flighting providing the best lift action ensuring a complete & consistent bottom to top mix of all feedstuffs. Built with mild steel for better wear resistance against acidic rations.

  • Multiple Knife Options:

    • Tungsten – General all-purpose mixing knife
    • 24″ Curved Carbide Knife – Industry exclusive carbide knife for processing bales and long stem forages and minimum wear.
    • Serrated Carbide Knives – Most aggressive patented knife processes bales and roughage up to 30% faster, reducing wear.
  • Scraper – Ensure you get a superior consistent mix with our adjustable and replaceable scraper.

  • Reinforcement Plate – Add 1/2″ thick reinforcement plates to the underside of your knives.

  • Hard Surfacing – Increase the  longevity of the auger by applying hard surfacing to the auger.

  • Stainless Steel Lining – Line the Augers with Stainless Steel for better longevity.

PLANETARY GEARBOX


  • Heavy Duty Multi-Stage + right angle stage high reduction planetary gearboxes

  • Rugged design, built to handle the toughest of feed types.

  • Compact dimensions providing high peak torque capacities

  • Built with only the highest quality materials in Italy, the industry leader in manufacturing gearboxes; subject to a sophisticated QC process, including self diagnostic machining equipment.

  • Each gearbox is rigorously tested inside our facility prior to installation to ensure it meets our reliability and quality standards.

  • 5 Year Warranty

NDEco heavy duty planetary gearbox 2100 3200

FRONT DOOR DISCHARGE


  • 58″ Front Door – Unload quickly and evenly through the industry leading 58″ wide door opening.

  • Conveyors – Front conveyors are 42″ wide with tall shields and suspended from the tub to ensure maximum feeding accuracy. Available conveyors are a 2-way flat or a folding dogleg conveyor.

  • Folding Dogleg Conveyors – 2′ to 5′ long Folding Dogleg Conveyors feature a single continuous chain with fewer moving parts meaning less maintenance.

  • Options – The Chute and Conveyors can be equipped with self leveling feed slides (steel, rubber or magnet). A Rubber Wind Guard is available for the Conveyors.

NDEco 36

SIDE DISCHARGE


  • Side Door Discharge – Unload quickly through the 43″ wide door opening. Choose between Right Side, Left Side or Double Side door opening.

  • Chute – All Side Door Discharges come standard with a chute.

  • Conveyor Options – Side Conveyors are offered in lengths of 3′, 4.5′, 6′, 7.5′ or 9′. (shown is a 4.5′ conveyor) Check the Specifications for conveyor reach dimensions.

  • Options – The Chute and Conveyors can be equipped with feed slides (steel, rubber or magnet). A Rubber Wind Guard is available for the Conveyors.

NDEco Dual Auger 7.5' long side conveyor
