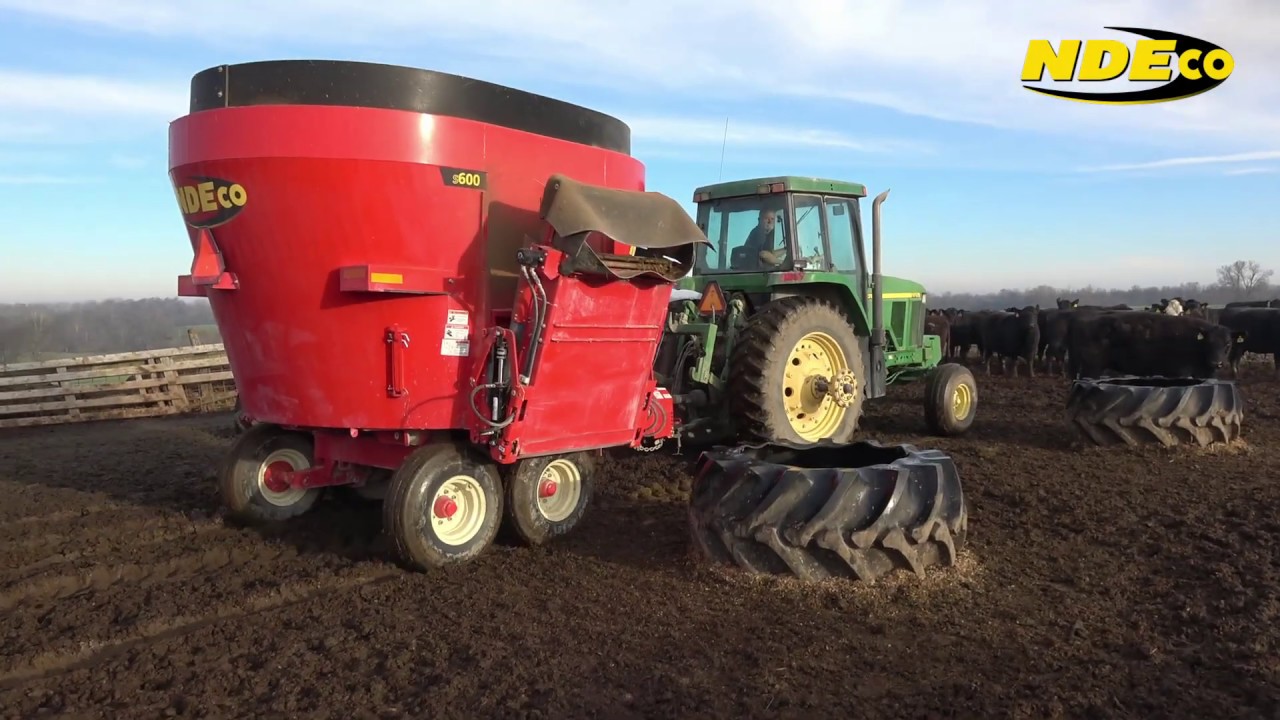

ndeco nde s600 vertical feed mixer wagon loading

S Series


The S Series mixers are smaller economical single auger mixers, yet highly configurable to suit your operation. It features a simpler design with fewer moving parts.

S Series

Single Auger

The S Series mixers are smaller economical single auger side door mixers, yet highly configurable to suit your operation. It features a simpler design with fewer moving parts. The aggressive full-flighted auger is driven by either a 540 or 1000 RPM multi-stage planetary gearbox. Several industry exclusive carbide knife options are available.

Models & Specs
Overview / Key Features
  • Side Door Mixers ranging in capacity from 330 to 575 cubic feet

  • Right or Left side Discharge – with a chute or 3′ to 9′ long conveyors to reach any type of bunk. See all Discharge and Conveyor details

  • Process large round or square bales with our exclusive 24″ curved Carbide Insert Knives on the full flighted Auger. See all Auger details

  • Solid Single or Walking Tandem Axle and wide Implement Tire option

  • All S Series mixers are available in a stationary form. See Stationary details

  • All ‘L’ model mixers offer a lower loading height of around 100″ making loading with a skid steer possible.


  • Side Door Mixers ranging in capacity from 330 to 575 cubic feet

  • Right or Left side Discharge – with a chute or 3′ to 9′ long conveyors to reach any type of bunk. See all Discharge and Conveyor details

  • Process bales and long stem forages easily with either of our patented knife options: 24″ Curved Carbide or the Serrated Carbide Knife. See all Auger details

  • 540 or 1000 RPM Multi-Stage Planetary specifically engineered for high peak torque capacities in Mixers. (See more Planetary details)

  • Solid Single or Walking Tandem Axle and wide Implement Tire option

  • Heavy duty fully tubed frame, guaranteeing unparalleled stability and reliability

  • All S Series mixers are available in a stationary form. See Stationary details

  • All ‘L’ model mixers offer a lower loading height of around 100″ making loading with a skid steer possible.

MODELS400LS450LS500LS600
ImageNDEco S400L Single Auger Vertical Feed MixerNDEco S450L Single Auger Vertical Feed MixerNDEco S500L Single Auger Vertical Feed MixerNDEco S600 w/chute - Single Auger Vertical Feed Mixer
Capacity330 ft³ / 9.3 m³380 ft³ / 10.8 m³410 ft³ / 11.6 m³495 ft³ / 14 m³
Capacity (w/12" Ext.)390 ft³ / 11 .1 m³450 ft³ / 12.8 m³485 ft³ / 13.8 m³575 ft³ / 16.2 m³
Empty Weight6430 lbs7190 lbs7730 lbs8080 lbs
Knives (max)8 or 98 or 98 or 99
Door Opening Width43"43"43"43"
Floor Thickness3/4"3/4"3/4"3/4"
Wall Thickness1/4"1/4"1/4"1/4"
PTO HP Requirement (min)75 - 85 HP85 - 100 HP100 - 120 HP100 - 120 HP
PTO Speed540/1000 RPM540/1000 RPM1000 RPM1000 RPM
Standard Tires12.5L x 16 - 14 ply12.5L x 16 - 14 ply19.0/45-17 - 18 ply19.0/45-17 - 18 ply
AxlesSingle/TandemSingle/TandemSingle/TandemSingle/Tandem
A - Height100"102"100"112"
B - Length192"194"196"196"
C - Width (w/chute)99"105"111"111"
C - Width (w/conveyor)105.5"111.5"116"116"
E - Track Width (standard)92"92"92"92"
F - Tub Width91 "97"103"103"
G - Tub Length136"143.5"144.5"144.5"
Mixer Height Dimensions - S Series
MODELSUSPENSIONTIRESHEIGHT
S400LSingle Axle12.5L x 16100
S400LSingle Axle15.0/55-17
S400LSingle Axle19.0/45-17
S400LTandem Walking12.5L x 16
S400LTandem Walking15.0/55-17
S450LSingle Axle12.5L x 16102
S450LSingle Axle15.0/55-17104
S450LSingle Axle19.0/45-17
S450LTandem Walking12.5L x 16
S450LTandem Walking15.0/55-17
S500LSingle Axle15.0/55-17100
S500LSingle Axle19.0/45-17101
S500LTandem Walking12.5L x 16
S500LTandem Walking15.0/55-17
S600Single Axle15.0/55-17112
S600Single Axle19.0/45-17
S600Tandem Walking12.5L x 16
S600Tandem Walking15.0/55-17

Discharge DimensionsChute3' Conveyor4.5' Conveyor6' Conveyor7.5' Conveyor9' Conveyor
H - Unloading Height (extended)28.5"38"44.5"51"58"64.5"
I - Unloading Reach8"38.5"55"72"89"105.5"
J - Clearance28.5"24.5"24.5"24.5"24.5"24.5"
NDEco FS Series 58
All S Series Options
S400L
S450L
S500L
S600

24″ Curved Carbide Knife

Patented knife for processing bales and cutting/mixing long stem forages.

Serrated Carbide Knife

Patented knife cuts bales and long stem by up to 30% faster than the standard carbide knife with reduced wear.

2-Speed Gearbox

Add a 2-speed gearbox to the PTO drive.

Conveyor Rubber Feed Slide

Guide the feed with a rubber feed slide extension.

Conveyor Wind Guard

Protect the feed as it comes off the conveyor with a Rubber Wind Guard.

Walking Tandem Axles

Navigate any terrain with Walking Tandem Axles, and can be equipped with standard or wider implement tires.

Scale Monitors

Choose a basic or fully programmable Weight-tronix or Digi-Star Scale Indicator or a Remote Display.

Road Light Kit (LED)

Be road safe with the LED lighting kit.

12″ Rubber Extension

Extend the capacity by adding a 12" rubber extension.

Conveyor Magnet Feed Slide

Add a magnetic feed slide to any conveyor or chute.

Side Door Conveyors

Choose a 42″ wide folding side conveyor from lengths of 3′, 4.5′, 6′, 7.5′ or 9′.

Folding Side Ladder

Compact folding ladder provides a view of the mix.

MegaMag Restrictor

The restrictor prevents dry materials (hay) from swirling. In addition, remove metallic debris from your feed with a powerful restrictor mounted magnet.

All S Series Images
S400L
S450L
S500L
S600

See all Videos

NDEco Auger feed mixer 24
See the Volcanic Mix

AUGER & KNIVES


Our auger is the key component for producing the most uniform and consistent ration throughout the mix from bottom to top. It features an aggressive design with full flighting on a continuous curve without uneven cutouts that create inconsistent feed drops. This continuous curve provides the best lift action and ensures that once feed material is picked up it moves up in a uniform and consistent manner, rolling material back into the mix evenly and not dropping material in batches that create an uneven ration throughout.

Not only does this create a more uniform ration, it also speeds up the processing time by working harder to ensure once feed is picked up it keeps moving with maximum efficiency. Being aggressive with the design focuses on the best possible mix at the fastest possible pace with the largest possible material load, directly converting the required horsepower into the result of the mix.

To match the aggressive auger design, each auger has the capacity of up to 9 large knives, including industry exclusive carbide options designed to aggressively slice through bales and roughage.


  • Full Flighting – A one piece, 5/8″ thick continuous tapered flighting providing the best lift action ensuring a complete & consistent bottom to top mix of all feedstuffs. Built with mild steel for better wear resistance against acidic rations.

  • Multiple Knife Options:

    • Tungsten – General all-purpose mixing knife
    • 24″ Curved Carbide Knife – Industry exclusive carbide knife for processing bales and long stem forages and minimum wear.
    • Serrated Carbide Knives – Most aggressive patented knife processes bales and roughage up to 30% faster, reducing wear.
  • Scraper – Ensure you get a superior consistent mix with our adjustable and replaceable scraper.

  • Reinforcement Plate – Add 1/2″ thick reinforcement plates to the underside of your knives.

  • Hard Surfacing – Increase the  longevity of the auger by applying hard surfacing to the auger.

PLANETARY GEARBOX


  • 540 or 1000 RPM Heavy Duty Multi-Stage planetary gearbox

  • Resistance to overloading and dissipates heat effectively

  • Built to handle all types of feed

  • Each gearbox is rigorously tested inside our facility prior to installation to ensure it meets our reliability and quality standards.

  • 5 Year Warranty (2 Year full warranty + 3 Year Prorated)

NDEco heavy duty planetary gearbox 2100

SIDE DISCHARGE


  • Side Door Discharge – Unload quickly through the 43″ wide door opening. Choose between Right Side, Left Side or Double Side door opening.

  • Chute – All S Series mixers come equipped with a discharge chute.

  • Conveyor Options – Side Conveyors are offered in lengths of 3′, 4.5′, 6′, 7.5′ or 9′. (shown is a 4.5′ conveyor) Check the Specifications for conveyor reach dimensions.

  • Options – The Chute and Conveyors can be equipped with feed slides (steel, rubber or magnet). A Rubber Wind Guard is available for the Conveyors.

NDEco NDE side conveyor
Stationary
NDEco S Series Stationary vertical tmr feed mixer

All S and FS series mixers are available in a stationary configuration. Displayed unit is an S400 model with the following specifications:

  • Planetary geared for a direct drive

  • 30hp 3 phase Leeson motor 1750rpm

  • Benshaw VFD with 3 operating speeds
